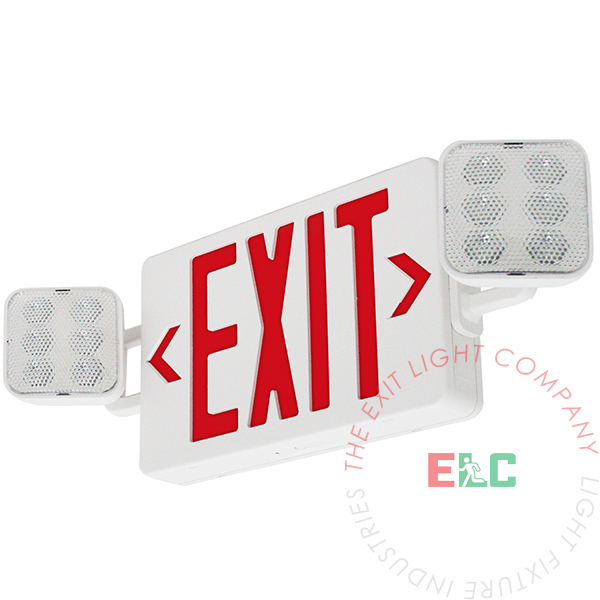

Combo | LG Series Customizable Red [COMBOLG-R]

An efficient and secure Exit Sign / Emergency Light Combo. Save money buying this 2-in-1 product. Long lasting, low maintenance NiCad battery. No heavy, short-lived sealed lead acid batteries! Works on either 120 or 277 VAC. Faceplate includes knock-out left/right arrows. Fixture is 1 or 2 sided. Product is UL Listed and meets NFPA 101, OSHA and UL 924 emergency codes.

38.00 38.0 USD 38.00


  • Housing Color
  • Operation Type
  • Input Voltage
  • Listing
  • Cord

This combination does not exist.

Input Voltage: 120-277V 60Hz

Download Spec-Sheet:
Installation Instructions:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.


  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • Listed for damp location
  • All LED light! No SLA batteries, uses long lasting NiCads that are very low maintenance (battery included)
  • Two fully adjustable, glare-free LED lighting heads
  • Injection molded, 5VA flame retardant thermoplastic housing
  • 120/277 VAC operation
  • Universal mounting plate
  • Knock-out left/right arrows
  • Short circuit, voltage surge, brown out and low battery voltage disconnect protected
  • LED indicator light with push-to-test switch

Previous Product Codes: COMBOR2, COMBO-R2, and ELCCOMBO2-R

Compatible Battery:  Battery Backup: 3.6V 1000mAh
Remote Head: 9.6V 900mAh

Compatible Remote Head(s): RHB-L-9V and RHB-WPL-9V

To use with with remote heads, please change the Operation Type above to Battery Backup + Remote Head Capable to ensure compatibility. Code at time of checkout must read: COMBOLG-R-(Housing Color)-RH.


Width 20"
Height 8.5"
Depth 2"
Weight 8.00 lb


  • RED LED Combo Exit Sign / Emergency Light
  • Two "EXIT" Faceplates (with optional knockout arrows)
  • One Blank Faceplate
  • Mounting Canopy, Installation Instructions & Hardware (Inside Unit)
  • NiCad Battery - Must connect the battery after installation


This Combo Exit Sign is constructed from injection-molded, high-impact, engineering-grade, 5VA flame retardant thermoplastic. White housing is standard.


Emergency lamps use long-lasting, energy efficient ultra bright white LEDs. Heads are made with high-performance chrome-plated reflectors and polycarbonate lenses for optimal light distribution. Exit portion uses red or green LEDs.


Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates recharging a discharged battery within 24 hours.


This Combo Exit Light is battery backup model designed with a maintenance-free 3.6V 1000mAh NiCad battery that provides a minimum emergency duration of 90 minutes. Remote Head capable unit is designed with a maintenance-free 9.6V 900mAh Ni-Mh battery that provides 90 minute battery backup time (180 minute battery backup time if no remote heads are connected). Recharge time of the battery is 24 hours.


Temperature Ratings
Standard Option0°C to 40°C / 32°F to 104°F


Download .IES File

*Self-Testing / Remote Head Capable ONLY

Standard mounting height of 7.5ft multiple units illuminate 1 footcandle (FC) spaced at 18ft for a 3ft path of egress.

At a mounting height of 7.5ft, multiple units illuminate 1 FC spaced at 14ft for a 6ft path of egress.


Unit continuously monitors the AC power, battery supply voltage, emergency lamp condition and charging circuit. If failure is detected, the indicator will show status and correct when adjusted. Unit will automatically perform NFPA required monthly and annual testing. Refer to user manual for details.


The remote head capability option allows the COMBOLG-R unit to supply power to up to two additional 9.6V LED remote heads. The remote heads would then operate on the same emergency mode as the standard units (see Emergency Operation Section).


120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.  220V/50Hz option available as well but note that this model is not UL certified.


This Combo sign is suitable for surface wall and top mounting via included canopy. Snap together design allows for quick and easy installation. Knock-out chevrons for customized egress signage.

Mounting Configurations Explained

View Installation Instructions
