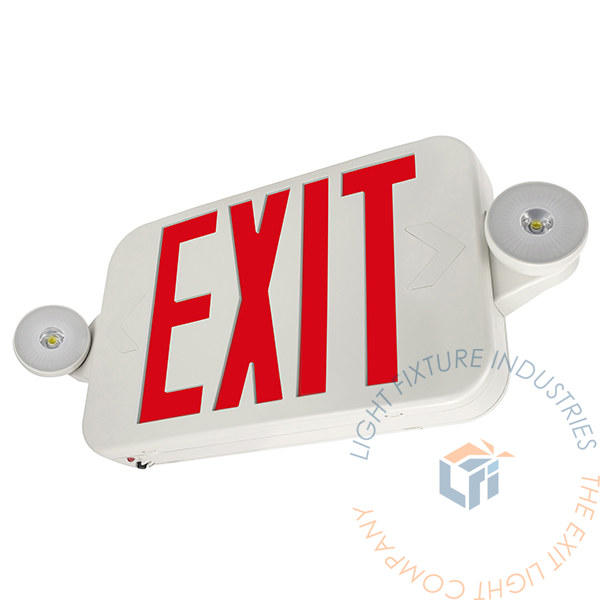

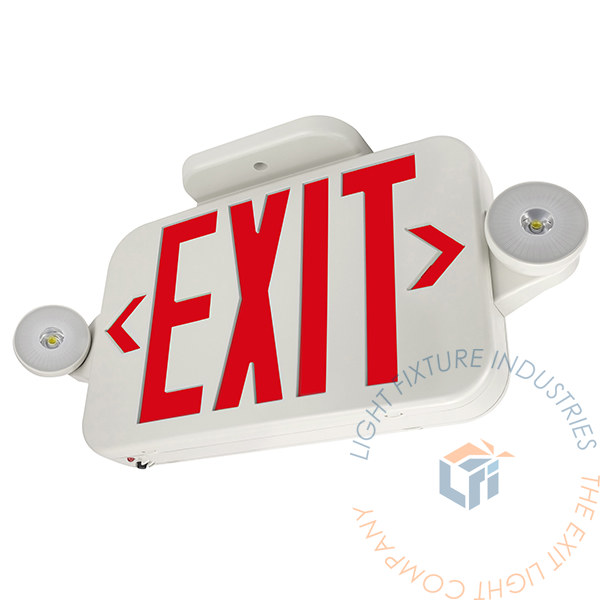

Combo | JR Series Red | White Housing [COMBOJR-R]

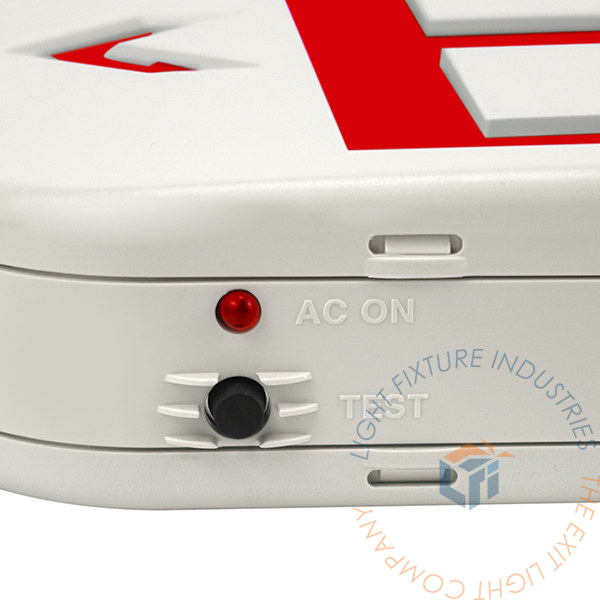

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL). This unit uses energy efficient and long lasting LED's. This unit contains a battery for backup power. The battery must be connected during installation. The COMBOJR-R series is constructed from injection molded, impact- and scratch-resistant and corrosion-proof UL 94 V-0 flame retardant thermoplastic housing. White housing is standard. Uses (2) 1W lamps that distribute even white light. EXIT portion uses long-lasting, efficient red LEDs. Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours. The COMBOJR-R Combo Exit Light series is designed with a maintenance-free 3.6V 1000mAh NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry. The COMBOJR-R is suitable for surface wall and top mounting via included canopy. Unibody housing snaps together with no additional fasteners. Quick connect installation design allows for quick and easy installation. Knock-out chevrons for customized egress signage and field adjustable. Mounting Configurations Explained
FEATURES
SPECIFICATIONS
Dimensions
Height
7.2"
Depth
2"
Length
16.45"
Weight
10.00 lb
WHAT'S INCLUDED
CONSTRUCTION
ILLUMINATION
EMERGENCY OPERATION

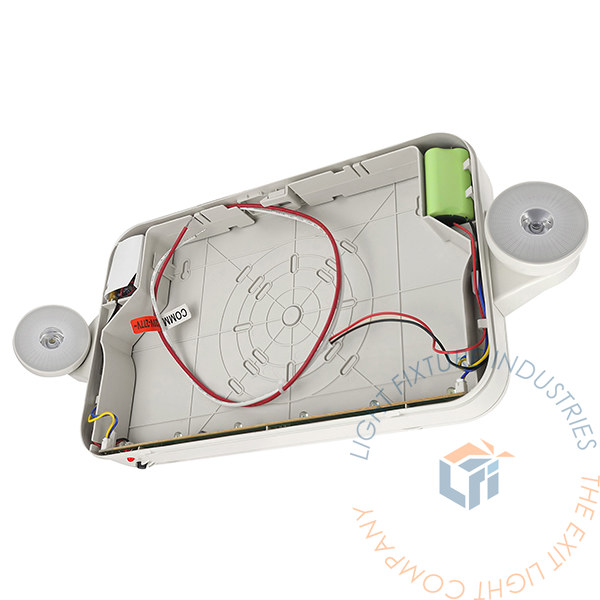

BATTERY - BATTERY BACKUP
OPERATIONAL TEMPERATURE
Temperature Ratings Standard Option 0°C to 40°C / 32°F to 104°F ELECTRICAL COMPONENTS
INSTALLATION
DIMENSIONS
