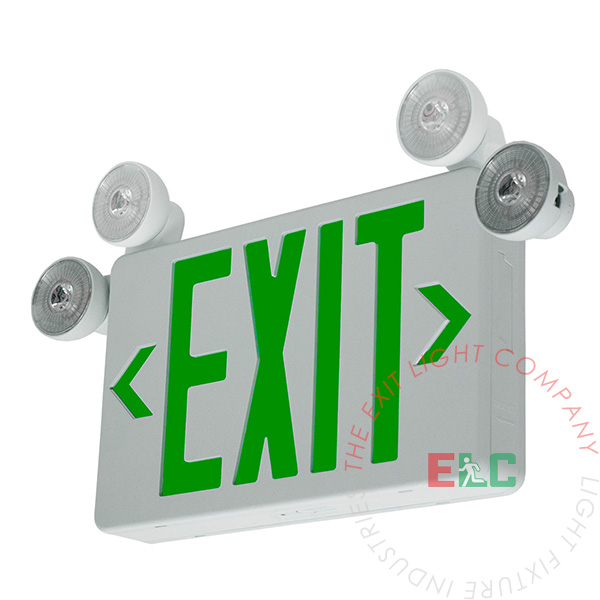

Combo | C Series Swivel Green | White Housing | Battery Backup [COMBOC-G]

A compact, reliable and secure Exit Sign / Emergency Light Combo. Save money buying this 2-in-1 product. Unit heads are fully adjustable and swivel from top to side mount. Long lasting, low maintenance nickel cadmium battery. No heavy, short-lived sealed lead acid batteries! Works on either 120 or 277 VAC. Faceplate includes knock-out left/right directional chevrons. Fixture is single or double sided.

29.00 29.0 USD 29.00

26.00

  • Operation Type

This combination does not exist.


Download Spec-Sheet:
Download MSDS:
Installation Instructions:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.

FEATURES

  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • All LED light! No SLA batteries, uses long lasting NiCads that are very low maintenance
  • Fully adjustable swivel-mount LED lamp heads each equipped with white LEDs
  • Universal mounting canopy for top installation, flush mount to wall, or side mount
  • Lightweight with snap-together construction for easy installation
  • LED status indicator
  • Injection molded, impact- and scratch-resistant, corrosion-proof, UL 94 V-0 flame retardant housing
  • Push-to-test switch
  • Universal transformer for 120 or 277 VAC operation
Compatible Battery:  BAA-36900


SPECIFICATIONS

Dimensions
Width 11.813"
Height 7.25"
Depth 1.813"
Weight 4.00 lb

WHAT'S INCLUDED

  • GREEN LED Combo Exit Sign / Emergency Light (Lamp Heads Inside Unit)
  • Two "EXIT" Faceplates (with optional knockout arrows)
  • One Blank Faceplate
  • Mounting Canopy, Installation Instructions & Hardware (Inside Unit)
  • NiCad Battery - Must connect the battery after installation


CONSTRUCTION

The COMBOC-G series is constructed from injection molded, impact- and scratch-resistant and corrosion-proof UL 94 V-0 flame retardant thermoplastic housing. White housing is standard.

ILLUMINATION

Uses two 1W LED lamp heads. Lamp heads are on track-and-swivel guides. Heads are moveable from side to top of the unit for a wider area of coverage pipe.

EMERGENCY OPERATION

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

BATTERY - BATTERY BACKUP

The COMBOC-G Combo Exit Light is designed with a maintenance-free 3.6V 900mAh NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Operational temperature range is 50°F (10°C) to 104°F (40°C).

PHOTOMETRICS

Total Luminaire Lumens : 134.9 Per Lamp

Download .IES File

Standard mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 36ft for a 3ft path of egress.


ELECTRICAL COMPONENTS

Dual voltage input 120/347 VAC operation. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

INSTALLATION

The COMBOC-G is suitable for wall, side or ceiling installation via included mounting plate. Snap together design allows for quick and easy installation.

Mounting Configurations Explained

View Installation Instructions

DIMENSIONS
