Combo | NYC Approved Steel [NYCOMBOLED]

$ 80.00 80.0 USD $ 80.00

Housing Color
Operation Type

This combination does not exist.

Add to cart

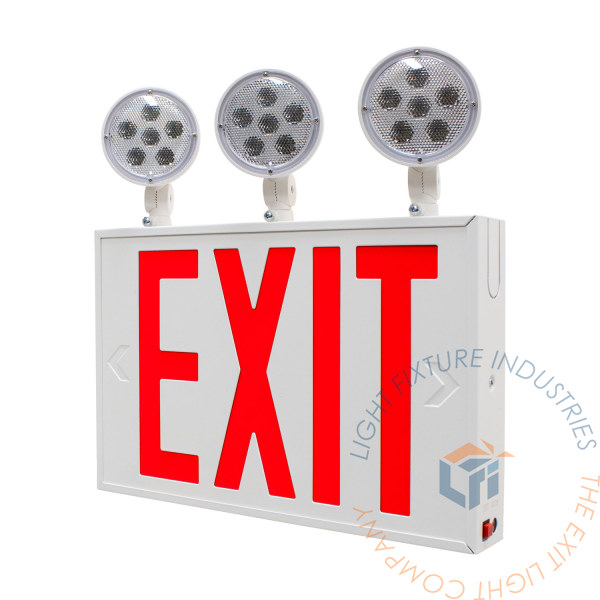

New York City Approved Exit Sign / Emergency Light Combo unit. Energy efficient and bright LED's power the EXIT sign verbiage and the fully adjustable lamp heads. This unit ships with 3 LED lamp heads, with the 3rd being optional. This NYC Combo Exit Light is single sided and allows for indoor surface wall mounting. EXIT faceplate has two optional pop-out directional chevron arrows.

Operation Type: Battery Backup

Download Spec-Sheet:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.

FEATURES

UL 924, NEC, OSHA and NFPA 101 Life Safety Code
New York City Approved Exit Sign
Damp Location rated
Rugged 20 gauge steel construction
Universal 120-277VAC 50/60Hz transformer
Fixture is single or double sided
Adjustable LED Lamps
Universal knock-out chevrons
Durable white or black powder coated finish

SPECIFICATIONS

Dimensions (May Vary by Model)
Height	14.88"
Depth	2.31"
Length	14.56"
Weight	10.00 lb

WHAT'S INCLUDED?

8" NYC LED Steel Combo Exit Sign
Two "EXIT" Faceplates
One Blank Faceplate
Mounting Canopy, Installation Instructions & Hardware (Inside Unit)
NiCad Battery - Must connect the battery after installation

CONSTRUCTION

The NYCOMBOLED Series combo exit sign features a rugged 20-gauge steel housing with a white or black powder coat finish. Faceplate meets NYC building code with its 8" EXIT letter height and 1" stroke.

ILLUMINATION

The emergency lamps are equipped with long-lasting, high-efficiency white LEDs that provide reliable illumination during power outages. When the AC power supply is cut off, the lamps deliver a bright output of 220 lumens or 330 lumens, ensuring adequate lighting in emergency situations.

BATTERY - BATTERY BACKUP

The NYCOMBOLED Series uses a 3.6V 2000mAh NiCad battery that provides 90 minute emergency run-time.

OPERATIONAL TEMPERATURE

Temperature Ratings
Standard Option	50°F to 104°F

PHOTOMETRICS

Total Luminaire Lumens : 330lm

Download .IES File

Suggested mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 50ft for a 3ft path of egress.

Mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 45ft for a 6ft path of egress.

Disclosure:

Spacing is measured in lab condition with an assumed open space, no obstruction and reflection rates of 80 (ceiling) / 50 (walls) / 20 (floor). Actual spacing may vary depending on what environment the fixture is installed in.

ELECTRICAL COMPONENTS

Universal input voltage of 120 to 277VAC at 50/60Hz. It features a recharge time of 24 hours and provides a duration of more than 90 minutes during emergency operation. Once the battery is fully charged, it automatically switches to a trickle charge mode to maintain optimal performance. The system includes battery over-discharge protection and a solid-state transfer circuit for reliable operation. Additionally, it is equipped with a test switch and a charge indicator light for easy maintenance and monitoring.

ELECTRICAL SPECIFICATIONS

Series	Input Voltage	Power Consumption	Current	Discharge Duration
NYCOMBOLED	120-277VAC 50/60Hz	3W	47mA	90 Minutes

INSTALLATION

The NYCOMBOLED series combo exit sign features a highly configurable design includes additional faceplate (with knock-out left/right chevron arrows) to install fixture as double-sided. Universal mounting kit allows top, side or flush installation.

Mounting Configurations Explained
