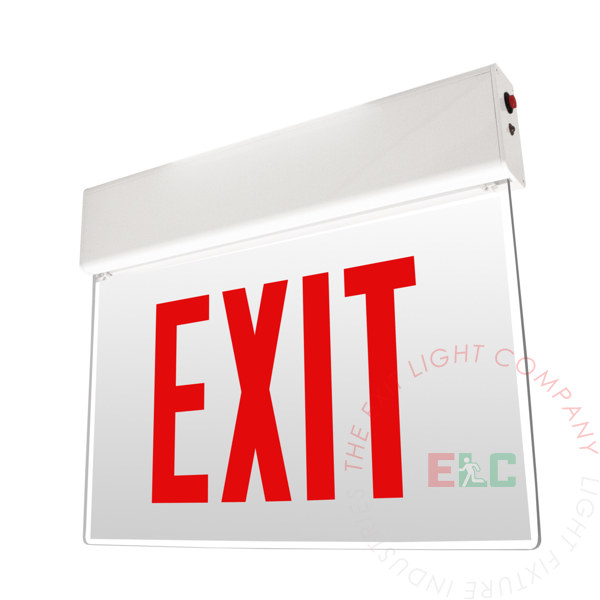

Exit Sign | Chicago Approved Surface Mount Edge Lit Red [CHELSM-R]
Housing Color: White |
![](/web/image/41374-66372db2/ul_logo.jpeg)
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
![](/web/image/41362-da32702f/led_logo.gif)
This unit uses energy efficient and long lasting LED's.
![](/web/image/47496-cd6c1bbd/logo_chicago.gif)
This product is approved for City of Chicago
FEATURES
- UL 924, NEC, OSHA and NFPA 101 Life Safety Code
- City of Chicago approved
- Now uses LEDs for improved energy efficiency
- Open-face acrylic panel, silk-screen letters
- 20 gauge steel housing with white powder coat finish
- Integrated solid state system, lock out, low voltage battery cutoff
- Universal Voltage Input 120-277, 50-60 Hz
SPECIFICATIONS
Dimensions | |
---|---|
Width | 1.62" |
Height | 11.5" |
Length | 14" |
Weight | 10.00 lbs |
WHAT'S INCLUDED?
- RED LED Edge Lit Exit Sign
- One "EXIT" Faceplate
- Installation Instructions
- Battery - Must connect the battery after installation
CONSTRUCTION
The CHELSM-R Edge Lit Exit Sign series is constructed from durable 20-gauge steel with a white finish. Extrusion slim type trim plate, with optical grade acrylic panel. Features a heat-tampered, impact-resistant glass lens.
ILLUMINATION
The CHELSM-R Edge Lit Exit Sign comes with high bright white LEDs.
EMERGENCY OPERATION
Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
BATTERY - BATTERY BACKUP
The CHELSM-R Edge Lit Exit Sign series is designed with a maintenance-free 3.2V 1500mAh LiFePO4 battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
OPERATIONAL TEMPERATURE
Temperature Ratings | |
Battery Backup | 50°F to 104°F |
ELECTRICAL COMPONENTS
Universal input 120-277 VAC 50-60 Hz operation. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit.
INSTALLATION
The CHELSM-R Edge Lit Exit Sign series is suitable for side, wall, and ceiling with its universal mounting mounting bracket.
DIMENSIONS
