![](/web/image/41374-66372db2/ul_logo.jpeg)
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
![](/web/image/41362-da32702f/led_logo.gif)
This unit uses energy efficient and long lasting LED's.
![](/web/image/47496-cd6c1bbd/logo_chicago.gif)
This product is approved for Chicago City.
FEATURES
- UL 924, NEC, OSHA and NFPA 101 Life Safety Code
- City of Chicago approved
- Now uses LEDs for improved energy efficiency
- Open-face glass panel, silk-screen letters
- 20 gauge steel housing with white powder coat finish
- Mounting Canopy for Side Mount
- Integrated solid state system, lock out, low voltage battery cutoff, dual voltage 120/277
SPECIFICATIONS
Dimensions | |
---|---|
Height | 16.1" |
Depth | 3" |
Length | 10.9" |
Weight | 10.00 lb |
WHAT'S INCLUDED

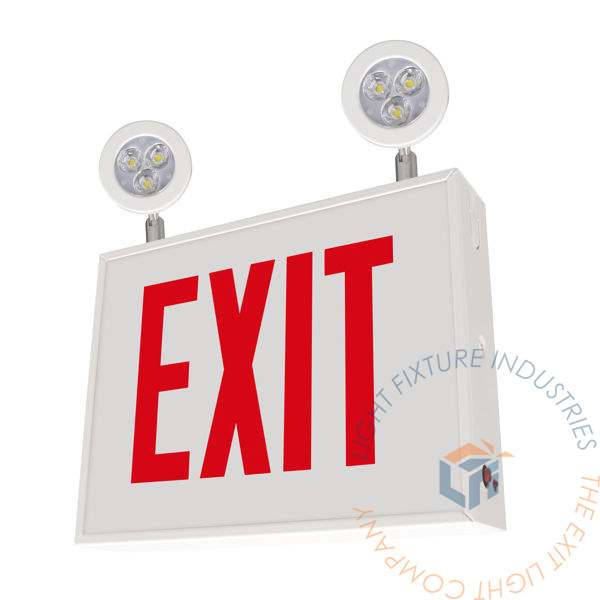

- RED LED Combo Exit Sign
- One "EXIT" Faceplate
- One Blank Faceplate
- Mounting Canopy, Installation Instructions & Hardware
- NiCad Battery - Must connect the battery after installation
CONSTRUCTION
The CHCO-R series is contructed from durable 20-gauge steel with a white finish. Features a heat-tampered, impact-resistant glass lens.
ILLUMINATION
The CHCO-R Combo Exit Sign offers two adjustable metal lamp LED heads: 3.6VDC 1.8W(2).
EMERGENCY OPERATION
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
BATTERY - BATTERY BACKUP
The CHCO-R series is designed with a maintenance-free battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
OPERATIONAL TEMPERATURE
Temperature Ratings | |
Battery Backup | 10°C to 40°C / 50°F to 104°F |
ELECTRICAL COMPONENTS
Univeral input 100-300 VAC 50HZ operation. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit.
INSTALLATION
The CHCO-R Combo Exit Sign is suitable for wall and side mount via steel mounting canopy.
Mounting Configurations Explained
