This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This unit uses energy efficient and long lasting LED's.
This unit contains a battery for backup power. The battery must be connected during installation.
- UL 924, NEC and NFPA 101 Life Safety Code
- Listed for damp location
- NiCad 4.8V 700mAh battery backup option
- Universal 120/277 VAC operation
- LED Energy savings
- Universal canopy included
- Spec grade cast aluminum housing
- Universal knock-out chevrons
- Push-to-test switch
- Charge rate / power on LED indicator light
Previous Product Codes: CA-G, CA-ABG

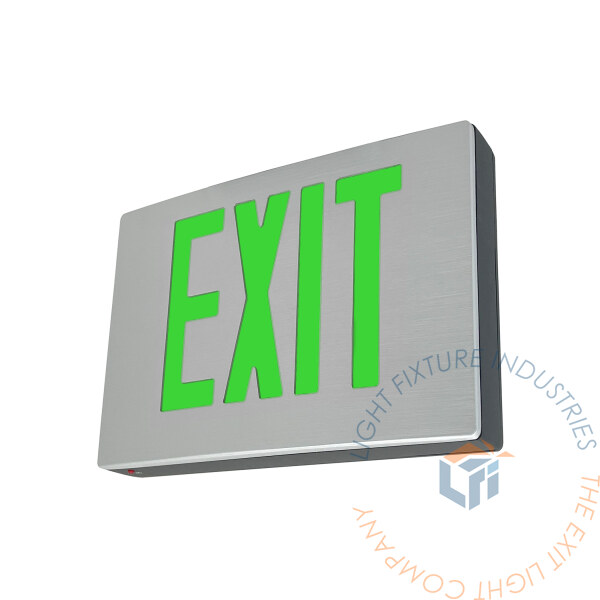

- GREEN LED Exit Sign
- One "EXIT" Faceplate (with optional knockout arrows)
- One Blank Faceplate
- Matching Second "EXIT" Faceplate (extra cost)
- Mounting Canopy, Installation Instructions & Hardware
- NiCad Battery - Must connect the battery after installation
The CA-G series is constructed from spec grade die-cast aluminum housing. Aluminum face with black housing is standard.
The CA-G series illumination is achieved by using long-lasting, efficient ultra bright red or green LEDs. Color-matched diffuser eliminates hots spots and striations, providing optimal light output.
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
BATTERY - BATTERY BACKUP
The CA-G series is designed with a maintenance-free NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Operational temperature range is 20°F (-7°C) to 95°F (35°C).
Unit continuously monitors the AC power, battery supply voltage, emergency lamp condition and charging circuit. If failure is detected, the indicator will show status and correct when adjusted. Unit will automatically perform NFPA required monthly and annual testing. Refer to user manual for details.
Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.
The CA-G is suitable for surface wall, side and top mounting via included canopy. Snap together design allows for quick and easy installation. Knock-out chevrons for customized egress signage.
