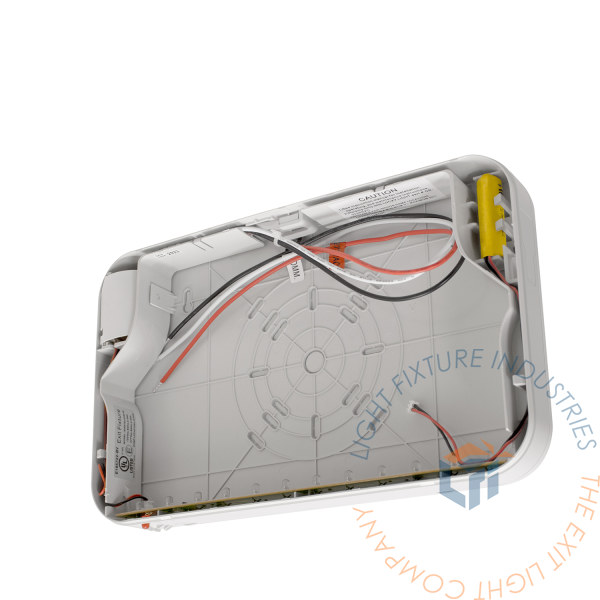

Exit Sign | Custom Wording | AREA OF REFUGE [EX-CU-AREA-OF-REFUGE]
This unit uses energy efficient and long lasting LED's. This unit contains a battery for backup power. The battery must be connected during installation. The EX series is constructed from injection molded, V-0 flame retardant, high impact thermoplastic housing. Available in white and black housing. The EX series illumination is achieved by use of long-lasting, efficient ultra bright red or green LEDs. Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours. The EX series is designed with a maintenance-free 4.8V 700mAh NiCad battery that provides a minimum emergency duration of 90 minutes. Recharged time of the battery is 24 hours. Operation temperature range is 20°F(-7°C) to 95°F (35°C). Dual voltage input 120/277VAC operation. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operation status of the unit. Unit offers surge protected, solid state circuitry. The EX is suitable for surface wall, side and top mounting via included canopy. Snap together design allows for quick and easy installation. Mounting Configurations Explained View Installation Instructions
FEATURES
SPECIFICATIONS
Dimensions
Height
7.5"
Depth
1.75"
Length
12.25"
Weight
5.00 lb
CONSTRUCTION
ILLUMINATION
EMERGENCY OPERATION
BATTERY - BATTERY BACKUP
ELECTRICAL COMPONENTS
INSTALLATION
