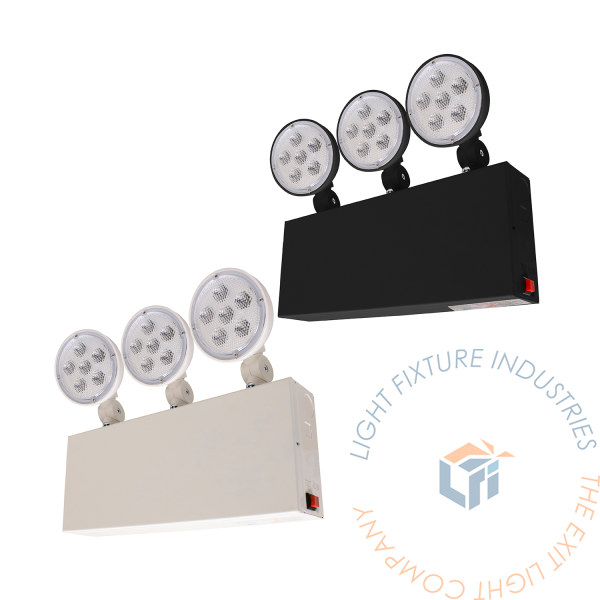

Emergency Light | Industrial New York City Approved Steel | White Housing [EL-STLED]

An efficient and secure steel housing emergency light with ABS thermoplastic LED lamp heads approved for NYC installations.

76.00 76.0 USD 76.00

76.00

  • Operation Type

This combination does not exist.

Operation Type: Battery Backup

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.

FEATURES

  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • Approved for New York City Code requirements
  • Rugged 20 gauge steel housing and ABS thermoplastic lamp heads
  • Universal 120/277 VAC input
  • Includes two adjustable LED lamp heads
  • Brown-out protection
  • Automatic low voltage disconnect (LVD)
  • Push-to-test switch
  • Charge rate / power-on indicator light

Previous Product Codes: EL-STLED


SPECIFICATIONS

Dimensions
Height 13.5"
Depth 2.5"
Length 12.5"
Weight 10.00 lb

WHAT'S INCLUDED

  • Steel NYC Approved Emergency Light
  • 2 LED Lamp Heads
  • Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation (Located inside unit)


CONSTRUCTION

The EL-STLED Steel Emergency Light is constructed from powder-coated 20-gauge steel with injection-molded thermoplastic heads. White housing is standard.

ILLUMINATION

The EL-STLED New York City Approved Emergency Light uses two LED lamps. High-performance smooth metal reflector and glass lens for optimal light distribution.

EMERGENCY OPERATION

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

BATTERY - BATTERY BACKUP

The EL-STLED series is designed with a maintenance-free NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Battery Replacement - 9.6V 1800Ah NiCad Battery.

PHOTOMETRICS

Total Luminaire Lumens : 195.3 Per Lamp

Download .IES File

Standard mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 48ft for a 3ft path of egress.


ELECTRICAL COMPONENTS

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

INSTALLATION

The EL-STLED is suitable for wall installation. Knockouts are located on the back of the unit for easy mounting configurations.

Mounting Configurations Explained

DIMENSIONS
