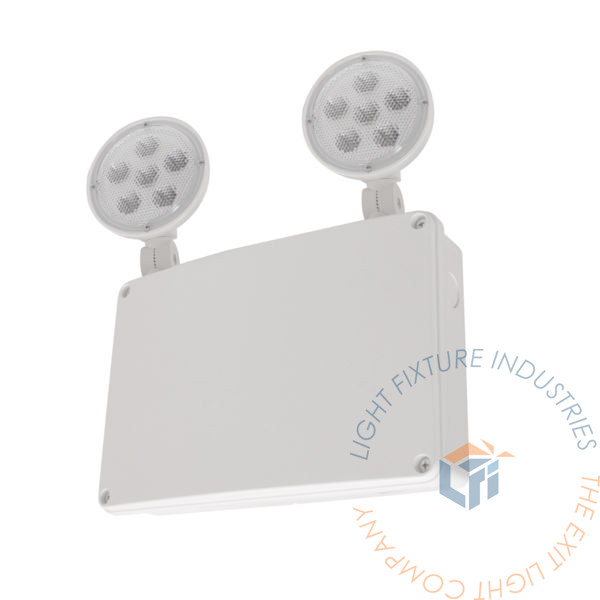

Emergency Light | Industrial Wet Location Rated | White Housing [EL-LWET]

An efficient and secure wet listed Emergency Light. Corrosion resistant enclosure, Sealed, AC ready light, featuring 15 LED lamp heads. Works on either 120 or 277 VAC. Light grey housing is standard.

68.00 68.0 USD 68.00

68.00

  • Operation Type

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Download Spec-Sheet:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.

FEATURES

  • UL 924, CSA Listed, and Wet Location Listed
  • Fully sealed and gasketed housing
  • Includes two 15 LED lamp heads
  • Maintenance-free sealed battery
  • Sealed momentary push-to-test switch & AC indicator light
Compatible Remote Head(s): RHB-L-MV, RHB-WPL-MV

To use with with remote heads, please change the Operation Type above to Battery Backup + Remote Head Capable to ensure compatibility. Code at time of checkout must read: EL-LWET-W-RH.


SPECIFICATIONS

Dimensions
Height 12.25"
Depth 3"
Length 8.6"
Weight 10.00 lb

WHAT'S INCLUDED

  • Wet Listed Emergency Light
  • Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation (Located inside unit)


CONSTRUCTION

The EL-LWET Emergency Light is constructed from corrosion resistant and impact resistant thermoplastic housing. Resistant to corrosive atmosphere, harsh environments and non-hazardous dust environments. UL listed for wet location and designed to withstand hose-downs, water spray and splashing water.

ILLUMINATION

EL-LWET emergency unit uses two top mounted heads lamps (15 LEDs in each lamp). Heads are constructed from high impact thermoplastic. Fully-adjustable.

EMERGENCY OPERATION

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

BATTERY - BATTERY BACKUP

The EL-LWET Emergency Light is designed with a maintenance-free 9.6V NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

OPERATIONAL TEMPERATURE

Temperature Ratings
SeriesTemperature
Standard Option10°C to 40°C / 50°F to 104°F

PHOTOMETRICS

Total Luminaire Lumens : 119

Download .IES File

Standard mounting height of 8ft illuminates 1 footcandle (FC) spaced at 34ft for a 3ft path of egress.

Alternate mounting height of 12ft illuminates 1 footcandle (FC) spaced at 27ft for a 3ft path of egress.


REMOTE HEAD CAPABLE OPTION

The remote head capability option allows the EL-LWET unit to supply power to up to two additional 9.6V remote heads. The remote heads would then operate on the same emergency mode as the standard units (see Emergency Operation Section).

ELECTRICAL COMPONENTS

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit.

INSTALLATION

The EL-LWET is suitable for surface wall mounting. Optional hardware is included. Hinged front access panel allows for trouble free installation and maintenance.

Mounting Configurations Explained

DIMENSIONS
