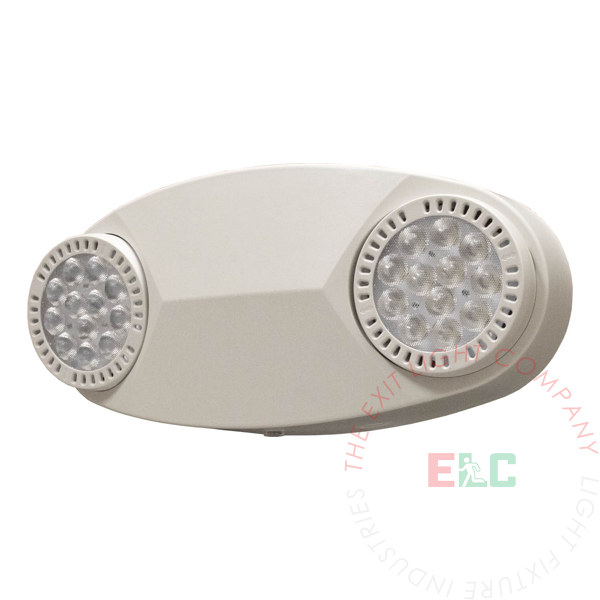

Emergency Light | Extreme High Output Ultra Bright [EL-EXHO]

New! This extreme high out put emergency light is our brightest emergency light. This high output LED light packs a punch at 1,100 lumens. Perfect for spaces requiring brighter lighting - provides up to 100-ft center-to-center spacing with a 3-ft path of egress. This fixture provides 90 minutes of emergency lighting, with its lightweight, maintenance-free lithium iron phosphate battery battery. Operates on 120-277 VAC. Comes with a universal back plate suitable for wall or ceiling installation.

180.00 180.0 USD 180.00

180.00

  • Housing Color
  • Operation Type

This combination does not exist.

Housing Color: White
Operation Type: Battery Backup

Download Spec-Sheet:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.

FEATURES

  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • Certified to CEC under title 20 regulations
  • Damp location listed
  • Lumen: 1100lm
  • 120-277 VAC operation
  • Two fully adjustable, glare-free LED lighting heads
  • Push-to-test switch and status indicator
  • Injection-molded, high impact, UV-stabilized, UL 94 VO thermoplastic housing
  • Lightweight with snap-together construction for easy installation


SPECIFICATIONS

Dimensions
Length 12.25"
Height 5.75"
Depth3.18"
Weight 3.00 lbs

WHAT'S INCLUDED

  • White All LED Emergency Light
  • Installation Instructions & Hardware
  • 9.6V 3000 mAh Battery - Must connect the battery after installation (Located inside unit)



CONSTRUCTION

The EL-EXHO series is constructed from injection molded, impact and scratch resistant, and corrosion-proof, 5V flame retardant thermoplastic housing.

ILLUMINATION

The EL-EXHO emergency light features two 12 piece super bright LEDs providing 1100 lumen output. Lamp heads are on track and swivel guides for great adjustability. Glare-free lenses provide clear light source to ensure great performance in emergency situations.

EMERGENCY OPERATION

Upon failure of the normal utility power, an internal solid-state transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

BATTERY - BATTERY BACKUP

The EL-EXHO Emergency Light series is designed with a maintenance-free 9.6V 3000mAh rechargeable lithium iron phosphate battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

OPERATIONAL TEMPERATURE

Temperature Ratings
Standard Option32°F to 122°F

PHOTOMETRICS

Total Luminaire Lumens : 1100lm

Standard mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 100ft for a 3ft path of egress.

Standard mounting height of 10ft illuminates 1 footcandle (FC) spaced at 88ft for a 6ft path of egress.







REMOTE HEAD CAPABLE OPTION

The remote head capability option allows the EL-EXHO unit has a remote capacity of 3.0 watts (standard). The remote heads would then operate on the same emergency mode as the standard units (see Emergency Operation Section).

ELECTRICAL COMPONENTS

Universal voltage input 120-277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

INSTALLATION

The EL-EXHO is suitable for wall or ceiling installation via included mounting plate. Snap together design allows for quick and easy installation.


DIMENSIONS
