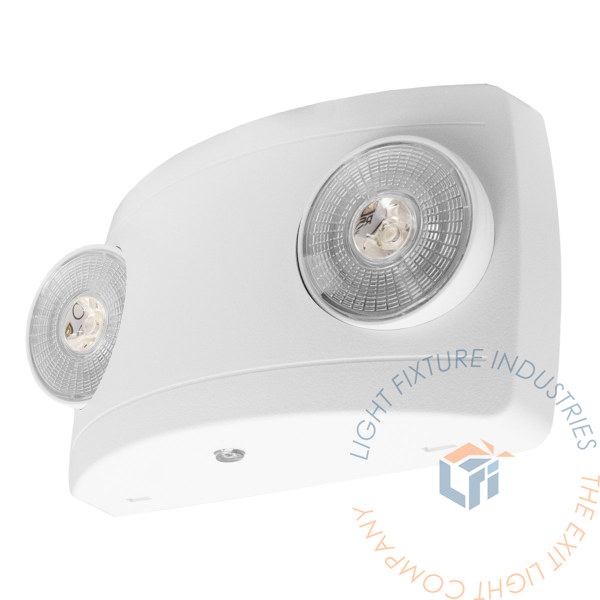

Emergency Light | C2 Series Compact | White Housing [EL-C2]

Fully adjustable emergency light with energy-saving LED lamps in a slimline, compact & economical package. Long lasting, low maintenance NiCad battery. No heavy, short-lived sealed lead acid batteries! Works on either 120 or 277 VAC.

22.00 22.0 USD 22.00

20.00

  • Operation Type

This combination does not exist.

Operation Type: Battery Backup

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Download Spec-Sheet:
Installation Instructions:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.

FEATURES

  • UL 924, NEC, OSHA and NFPA 101 Life SafetyCode
  • All LED light! No SLA batteries, uses long lasting NiCads that are very low maintenance
  • Two fully adjustable, glare-free LED lighting heads
  • Injection-molded, high impact, UV-stabilized, UL 94 V-O thermoplastic housing
  • Lightweight with snap-together construction for easy installation
  • Universal mounting plate with quick-connect feature
  • Universal J-box mounting pattern

Previous Product Codes: EL-CW2


SPECIFICATIONS

Dimensions
Height 4.252"
Depth 2.165"
Length 7.323"
Weight 2.00 lb

WHAT'S INCLUDED

  • White Compact LED Emergency Light
  • Universal Mounting Plate (Back Side of Unit)
  • NiCad Battery - Must connect the battery after installation


CONSTRUCTION

The EL-C2 light is constructed from injection molded, impact- and scratch-resistant and corrosion-proof UL 94 V-0 flame retardant thermoplastic housing. White housing is standard.

ILLUMINATION

Uses two 1W LED lamp heads. Lamp heads are on track-and-swivel guides. Glare-free lenses provide redundant light source to ensure performance in emergency situations.

EMERGENCY OPERATION

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery  charging to recharge a discharged battery in 24 hours.

BATTERY - BATTERY BACKUP

The EL-C2 emergency light fixture is designed with a maintenance-free 3.6V 900mAh NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the  battery is 24 hours. Operational temperature range is 50°F (10°C) to 104°F (40°C).

PHOTOMETRICS

Total Luminaire Lumens : 76.5 Per Lamp

Download .IES File

Standard mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 16ft for a 3ft path of egress.


ELECTRICAL COMPONENTS

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

INSTALLATION

The EL-C2 is suitable for wall or ceiling installation via included mounting plate. Snap together design allows for quick and easy installation.

Mounting Configurations Explained

View Installation Instructions

DIMENSIONS
