LED Driver is designed with an easy to follow wiring schematic
This unit uses energy efficient and long lasting LED's.
LED Driver is designed to support high voltage fixtures
FEATURES
- UL Listed for factory and field installation
- Meets NEC, IBC, and Life Safety Code Emergency Light Requirements
- High efficiency performance meets CA Title 20
- Compact Design
- Ideal for low profile indoor LED lighting
- Simple Wiring
- Self-Testing (monthly/yearly)
- Single Flex
- Constant Output Power
- Built-in Lithium Battery
SPECIFICATIONS
| Dimensions | |
|---|---|
| Width | 1.26" |
| Height | .83" |
| Length | 12.51" |
What's Included
- LED Driver
- Installation Instructions
- Wire Nuts
- Ribbon Test Button Module
- Push-in Connectors
CONSTRUCTION

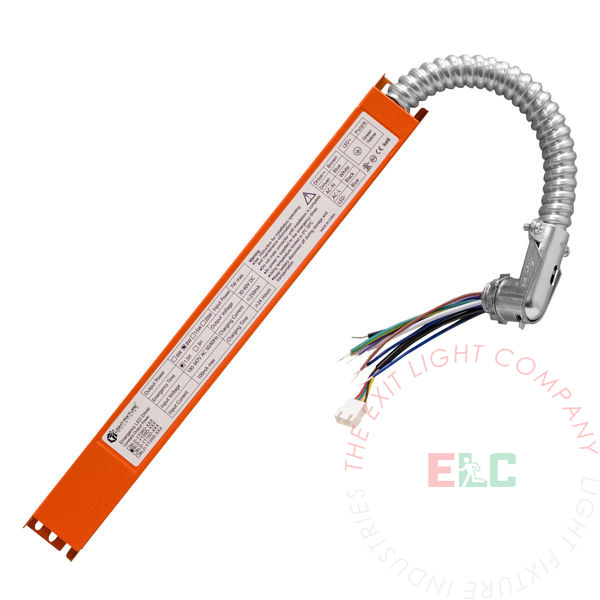

The EB-LEDR emergency driver is constructed from durable steel.
EMERGENCY OPERATION
The EB-LEDR emergency driver provides a minimum of 90 minutes of battery backup time
BATTERY - BATTERY BACKUP
The EB-LEDR emergency driver is designed with a maintenance-free lithium battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
OPERATIONAL TEMPERATURE
| Temperature Ratings | |
| Standard Option | 41°F to 122°F |
SELF-TESTING OPTION
The EB-LEDR emergency driver will perform an initial self-diagnostic test for 3 seconds after the diver has been properly installed followed by a second test after 120 minutes to confirm the wiring and battery output. The driver will perform monthly self-test every 30 days for 3 seconds; this will test for wiring and battery output. *A blinking LED or completely off means failed test.
ELECTRICAL COMPONENTS
| Model No. | EB-LEDR-8W |
| Input Power | 8W |
| Frequency | 50/60Hz |
| Input Voltage | 100-347V AC |
| Efficiency | ≥80% |
| Input Current | ≤100mA |
| Emergency Output Voltage Range | 30-60V DC |
| Emergency Time | 90 mins |
INSTALLATION
The EB-LEDR emergency driver can be installed in different types of indoor LED troffers, LED panels, vapor lights, linear lights, most low profile LED fixtures. We recommend confirming electrical specs to make sure the LED Driver is fully compatible.
Mounting Configurations Explained
DIMENSIONS
