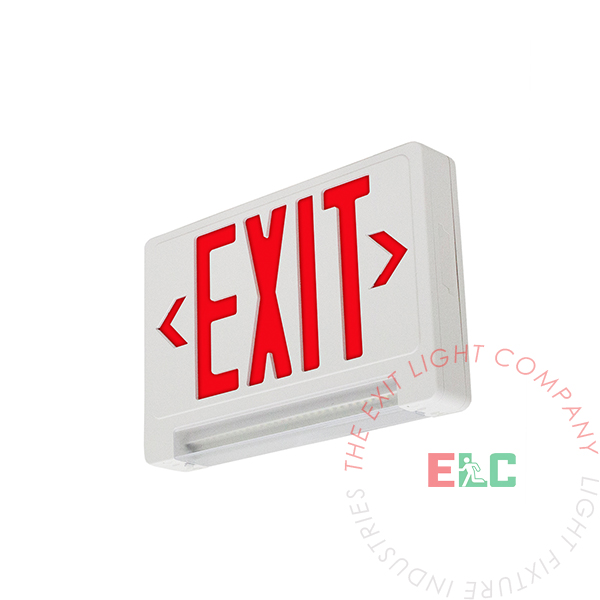

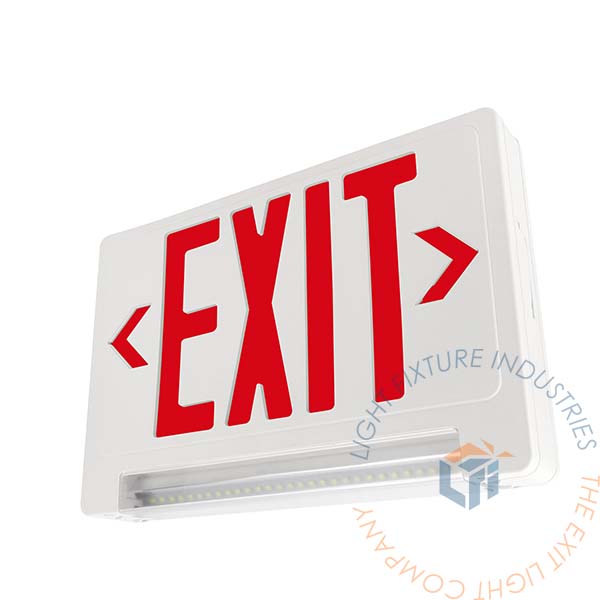

Combo | LP Series Light Bar Red [COMBOLP-R]
Offering a combination of exit signage and emergency lighting in a compact package, this unit, with its bar-style emergency light, offers even light distribution without the hassle of aiming individual heads! This low-profile combo unit is perfect for mounting above doors or otherwise restricted spaces. Long lasting, low maintenance NiCad batteries included. No heavy, short-lived sealed lead acid batteries! Faceplate includes knock-out left/right chevrons to customize your signage needs. Can be installed flush (single-sided only), top or side mounted.
The COMBOLP-R series is constructed from injection molded, impact- and scratch-resistant and corrosion-proof 5VA flame retardant thermoplastic housing. White housing is standard.
The COMBOLP-R is designed with a light bar that includes 36 in-line SM LED's with a reflective cover to provide balanced white light. The light bar is fully adjustable and can be adjusted without removing the complete unit. The EXIT portion uses long-lasting, efficient red or green LEDs.
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates recharging a discharged battery within 24 hours.
BATTERY - BATTERY BACKUP

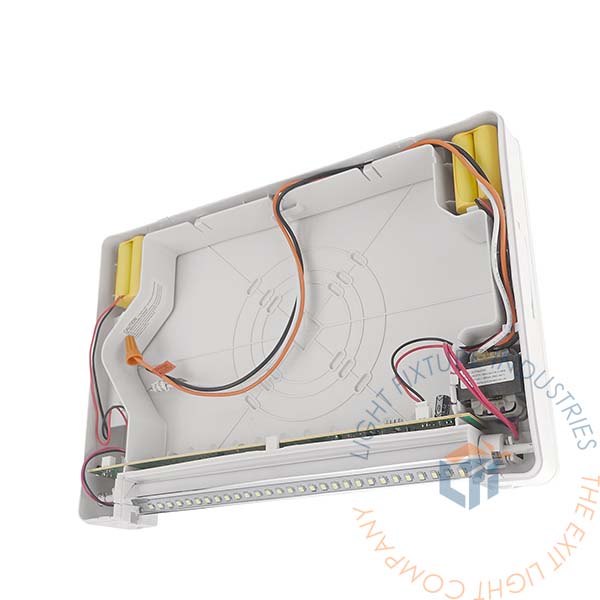

The COMBOLP-R Combo Exit Light is designed with 2 maintenance-free 4.8V 1000mAh NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours. Operational temperature range is 32°F (0°C) to 122°F (50°C).
Total Luminaire Lumens : 183.6
Standard mounting height of 7.5ft illuminates 1 footcandle (FC) over a distance of 15ft on a 3ft path of egress and 10ft on a 6ft path of egress.
At a mounting height of 7.5ft, multiple units illuminate 1 FC spaced at 16ft for a 3ft path of egress and spaced at 12ft for a 6ft path of egress.
Unit continuously monitors the AC power, battery supply voltage, emergency lamp condition and charging circuit. If failure is detected, the indicator will show status and correct when adjusted. Unit will automatically perform NFPA required monthly and annual testing. Refer to user manual for details.
REMOTE HEAD CAPABLE OPTION
The remote head capability option allows the COMBOLP-R unit to supply power to up to two additional LED remote heads. The remote heads would then operate on the same emergency mode as the standard units (see Emergency Operation Section).

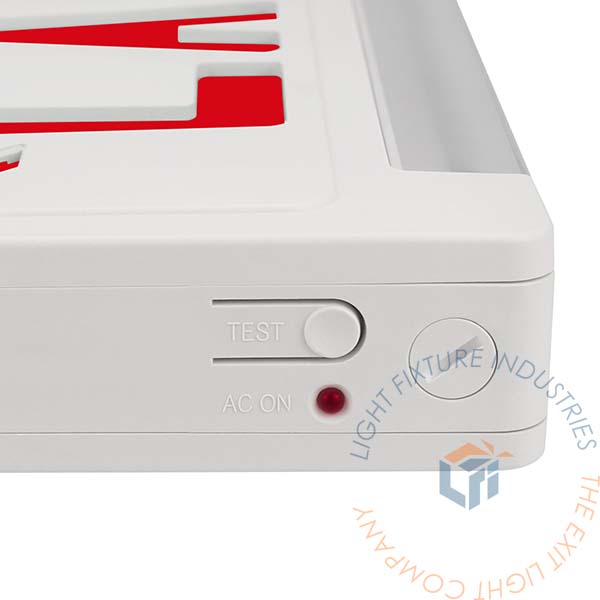

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

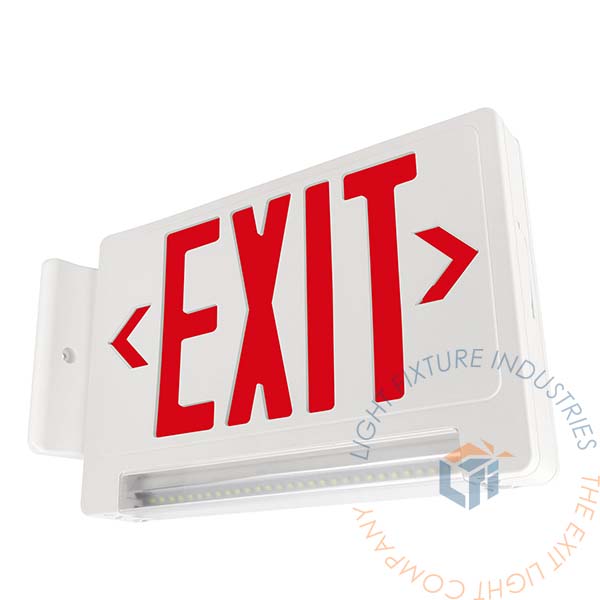

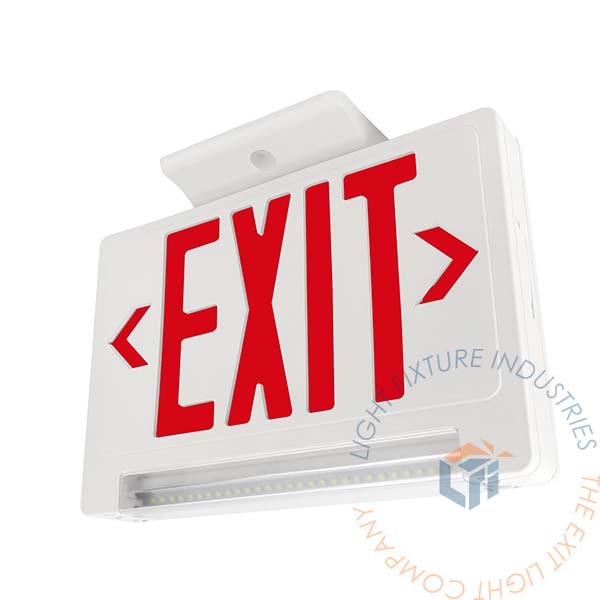

The COMBOLP-R is suitable for surface wall, side mount, and top mount via included canopy. Unibody housing snaps together with no additional fasteners. Quick connect installation design allows for quick and easy installation. Knock-out chevrons for customized egress signage and field adjustable.
