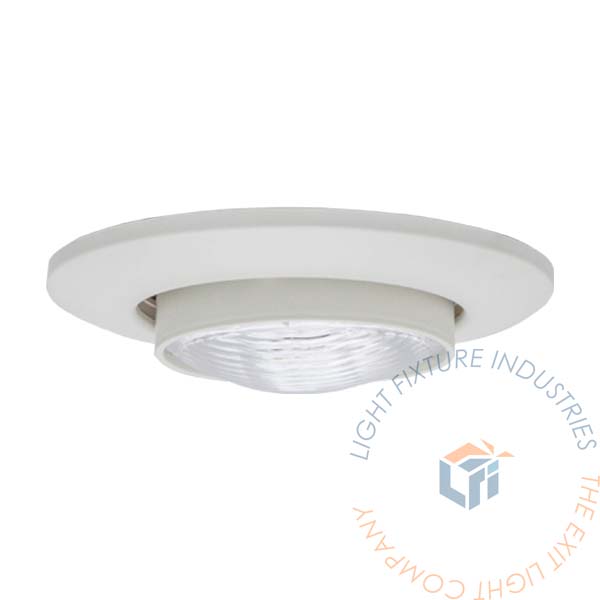

Emergency Light | Recessed 1 Head | White Housing [EL-RG6]

Emergency Light | Recessed 1 Head | White Housing [EL-RG6]

The EL-RG6 Adjustable Recessed Emergency Down-light Unit is a reliable and discreet emergency lighting solution designed for commercial and institutional applications. Featuring an ultra-bright 8W bi-pin halogen or energy-efficient 1.5W LED lamp head, it utilizes a sealed beam PAR36-type gimbal trim with a smooth chrome-plated reflector and plastic lens for superior light distribution. The unit operates on dual 120/277V input with a maintenance-free 6V sealed lead acid battery, providing a minimum of 90 minutes of emergency illumination through its automatic solid-state transfer switch. Its durable steel housing with a 6" recessed design includes adjustable gimbal trim, junction box knockouts, and secure spring clip mounting. Compatible with drop ceiling installations, the EMRL-1 ensures compliance with UL924 and NFPA 101 Life Safety Code requirements and comes backed with a five-year electronics and housing warranty. For added installation flexibility, an optional remodel can option is also available, making the EL-RG6 a versatile choice for both new construction and retrofit projects.

$ 129.00 129.0 USD $ 129.00

Operation Type
Can Type

This combination does not exist.

Add to cart

Install beautiful architectural emergency lighting directly into ceiling (t-bar). Lamp provides bright, safe lighting. Includes maintenance-free 6V backup battery. Works on either 120 or 227 VAC.

Operation Type: Battery Backup

Download Spec-Sheet:
Installation Instructions:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

Halogen Lighting
This unit produces High Output Halogen light.

Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.

FEATURES

UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
120/277V operation
Aluminum housing with plastic gimbal trim
IC rated for direct contact with insulation
Uses one 6V 8W halogen lamp
LED indicator light and test switch
Low voltage battery disconnect protected
Housing adjusts 1.375" to accommodate various ceiling thicknesses

Compatible Battery: B6V4A

SPECIFICATIONS

Dimensions
Width	8"
Height	7.125"
Diameter	7"
Weight	9.00 lb

WHAT'S INCLUDED

6" Adjustable Recessed Emergency Light
Installation Instructions & Hardware
SLA Battery - Must connect the battery after installation (Located inside unit)

CONSTRUCTION

The EL-RG6 is constructed with a steel mounting frame and 6" steel recessed housing with mounting bar hangers. The impact-resistant thermoplastic adjustable trim is securely attached to housing with spring clips.

ILLUMINATION

The EL-RG6 series has an adjustable, ultra-bright 8W bi-pin halogen lamp head. The sealed beam gimbal trim with smooth chrome-plated reflector and plastic lens offers optimal light distribution.

EMERGENCY OPERATION

The EL-RG6 has a 6V maintenance-free, rechargeable Sealed lead acid battery. Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

ELECTRICAL COMPONENTS

Dual 120/277 voltage. Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing. LVD (low voltage disconnect) prevents battery from deep discharge. Junction box with 3/4" knockouts for AC input.

INSTALLATION

Included Bar hangers allow for drywall or drop ceiling mount installations.

Mounting Configurations Explained

View Installation Instructions
