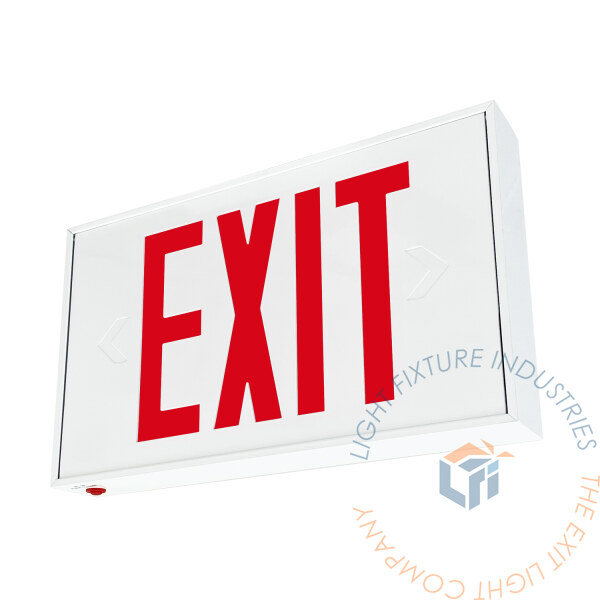

Exit Sign | Connecticut Approved Red | White Housing [EXCT-R]
This White Coated Aluminum ISA Exit Sign is designed to comply with the State of Connecticut Building Code requirements. This exit sign has 6" Red EXIT Lettering and a 6" International Symbol of Accessibility. This unit allows for ceiling, end and surface mounting.
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This unit uses energy efficient and long lasting LED's.
This unit contains a battery for backup power. The battery must be connected during installation.
- UL 924 Damp Location and State of Connecticut Build Code Approved
- NiCad 3.6V 300mAh battery backup option
- Universal 120/277 VAC operation
- Universal mounting canopy included
- Universal mounting pattern for surface mounting to a j-box
- Low Energy consumption (Less than 5W)
- Extruded aluminum housing with white finish
- Selectable chevron directional arrows
- Push-to-test switch
- Charge rate / power on LED indicator light
RED LED Connecticut Exit Sign
Two "EXIT" with ISA Faceplates
One Blank Faceplate
Mounting Canopy, Installation Instructions & Hardware
NiCad Battery - Must connect the battery after installation
The EXCT-R Exit Sign offers durable extruded aluminum housing with a white powder coat finish.
The EXCT-R Exit Sign uniform illumination is achieved by using long-lasting, efficient ultra bright red or green LEDs.
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
BATTERY - BATTERY BACKUP
The EXCT-R Exit Sign is designed with a maintenance-free 3.6V 300mAh NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
|Standard Option||-10°C to 45°C / 14°F to 113°F|
Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid-state circuitry. Operation Temperature range -10°C to 45°C / 14°F to 113°F
The EXCTW-R Exit Sign is suitable for surface wall, side and top mounting via included canopy. Universal mounting pattern on back faceplate allows for easy surface mounting to a j-box. Field selectable Chevron Arrows are included.
Mounting Configurations Explained
