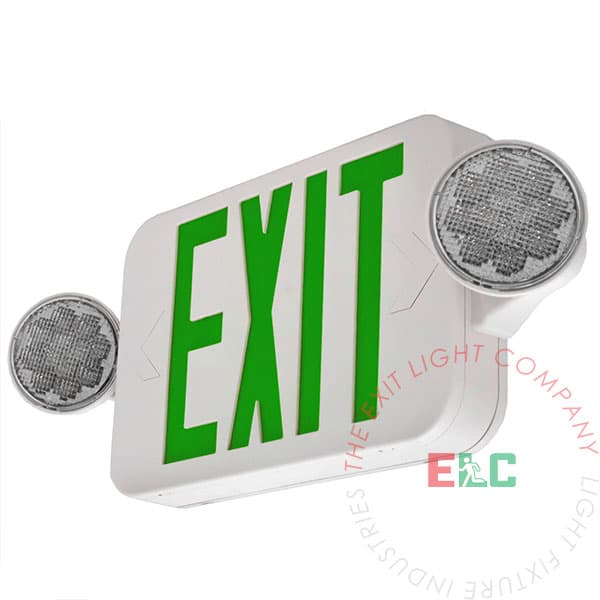

Combo | JR2 Series Standard Green | White Housing [COMBOJR2-G]
An efficient and secure Exit Sign / Emergency Light Combo. Save money buying this 2-in-1 product. Long lasting, low maintenance NiCad battery. No heavy, short-lived sealed lead acid batteries! Works on either 120 or 277 VAC. Faceplate includes knock-out left/right directional chevrons. Fixture is single or double sided.
The COMBOJR2-G series is constructed from injection molded, impact- and scratch-resistant and corrosion-proof UL 94 V-0 flame retardant thermoplastic housing. White housing is standard.
Uses two 1.5W LED lamp heads each equipped with 12 series parallel white LEDs. Lamp heads are on track-and-swivel guides. Glare-free lenses provide redundant light source to ensure performance in emergency situations. EXIT portion uses long-lasting, efficient red or green LEDs.
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
BATTERY - BATTERY BACKUP
The COMBOJR2-G Combo Exit Sign / Emergency Light is designed with a maintenance-free 3.6V 900mAh NiCad battery (Battery Backup & Self Testing Models) or a 3.6V 1800 mAh battery (Remote Head Capable Models) that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
|Standard Option||20°C to 30°C / 68°F to 86°F|
Total Luminaire Lumens : 63.1 Per Lamp
Standard mounting height of 7.5ft illuminates 1 footcandle (FC) over a distance of 24ft on a 3ft path of egress and 18ft on a 6ft path of egress.
At a mounting height of 7.5ft, multiple units illuminate 1 FC spaced at 25ft for a 3ft path of egress and spaced at 20ft for a 6ft path of egress.
Unit continuously monitors the AC power, battery supply voltage, emergency lamp condition and charging circuit. If failure is detected, the indicator will show status and correct when adjusted. Unit will automatically perform NFPA required monthly and annual testing. Refer to user manual for details.
REMOTE HEAD CAPABLE OPTION
The remote head capability option allows the COMBOJR2-G unit to supply power to up to two additional LED remote heads. The remote heads would then operate on the same emergency mode as the standard units (see Emergency Operation Section).
Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.
The COMBOJR2-G is suitable for surface wall and top mounting via included canopy. Unibody housing snaps together with no additional fasteners. Quick connect installation design allows for quick and easy installation. Knock-out chevrons for customized egress signage and field adjustable.
