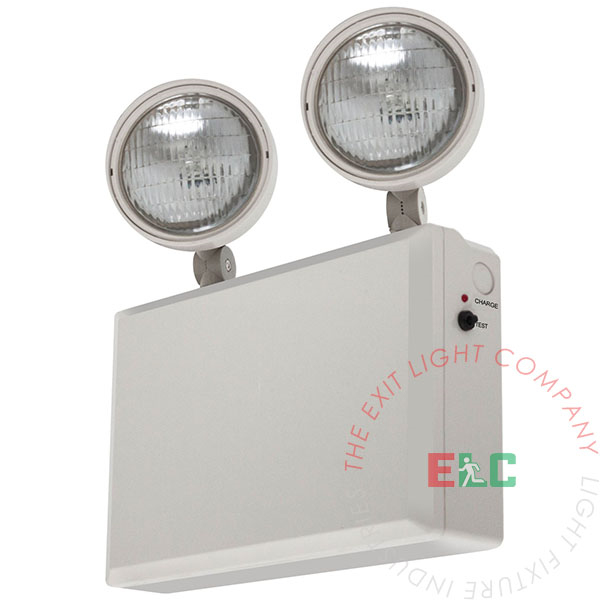

Emergency Light | Industrial 6 Volt Thermoplastic [EL-HD6]

An efficient and secure 6V Heavy Duty Emergency Light. Includes 6V 12Ah maintenance-free batteries, works on either 120 or 227 VAC.
The EL-HD6 emergency light can be ordered with 2 lamp heads or no lamp heads.
Easily extend your lighting requirements by connecting remote heads to the EL-HD6 unit. The unit will act as the main power source and provide power to the remote heads in case of a power outage.

125.00 125.0 USD 125.00


  • Operation Type
  • Assembly
  • Remote Capacity
  • Lamp Wattage
  • Temp Rating

This combination does not exist.

Operation Type: Battery Backup + Remote Capable

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Download Spec-Sheet:
Installation Instructions:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

This unit produces Incandescent light.
Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.


  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • Universal 120/277 VAC (60Hz) input
  • Compact low profile design in neutral finish
  • Optional two adjustable lamp heads
  • Environmentally-coated, solid state charger
  • Automatic low voltage disconnect (LVD)
  • Push-to-test switch
  • Charge rate / power-on indicator light

Previous Product Codes: EL-50-HD6

Compatible Battery:  B6V12A

Compatible Remote Head(s):
LED: RHB-WPL (Outdoor Use), RHB-L (Indoor Use)
Incandescent: RHR-6V


Width 12.6"
Height 14"
Weight 23.00 lb


  • Heavy Duty Emergency Light
  • Installation Instructions & Hardware
  • 2 or 4 (Depending on Wattage Capacity Option) SLA Batteries - Must connect the batteries after installation (Located inside unit)


The EL-HD6 Industrial Emergency Light has an Injection-molded, engineering-grade, 5VA flame retardant, high-impact thermoplastic construction housing.

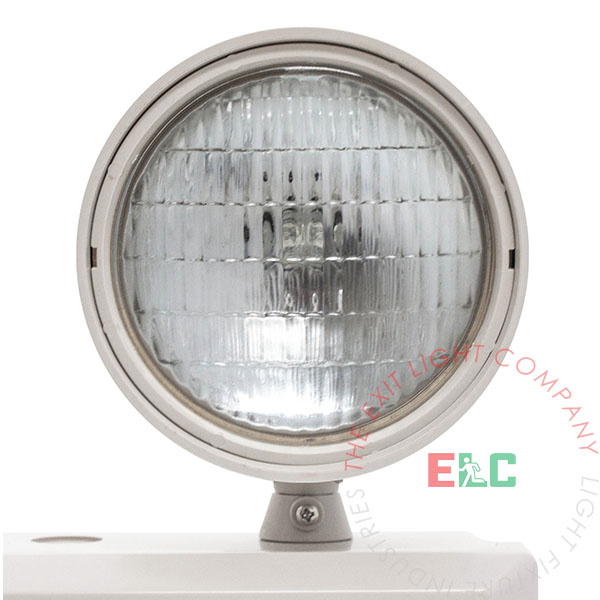

The EL-HD6 Industrial Emergency Light can be configured with 2 7W or 9W adjustable lamps. The unit is also available with no lamps that allows additional remote head lamps to be connected for optimal lighting.


Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.


The EL-HD6 Emergency Light comes with maintenance-free 6V 12Ah rechargeable sealed lead acid batteries. 50W units are equipped with two 6V batteries and 100W units are equipped with four 6V batteries.


Temperature Ratings
Standard Option25°C to 40°C / 77°F to 104°F
Expanded Temperature Rating-9°C to 40°C / 15°F to 104°F


The remote head capability option allows the EL-HD6 unit to supply power to multiple remote heads. The number of remote heads supported will vary depending on wattage model and remote head wattage. The remote heads would then operate on the same emergency mode as the standard units (see Emergency Operation Section).

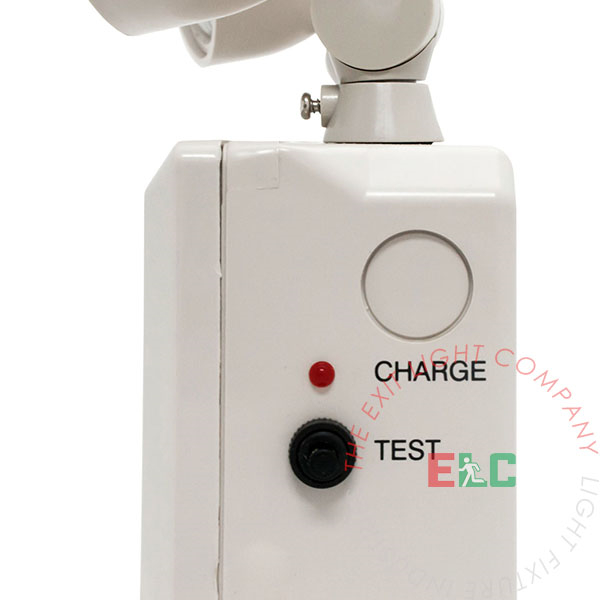

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.


The EL-HD6 Industrial Emergency Light is suitable for wall installation. Back cover is designed with universal knockouts for multiple installation configurations. Unit includes side and top knockouts for conduit feed applications.

Mounting Configurations Explained

View Installation Instructions
