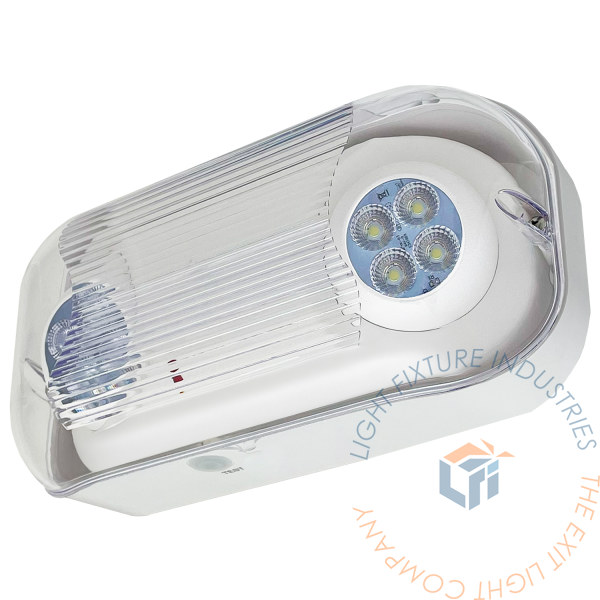

Emergency Light | Wet Location Rated [EL-WETLED]

This wet location emergency light provides a stylish and practical solution to your outdoor emergency lighting needs. A crisp white thermoplastic housing is enclosed with a clear polycarbonate lens and fully gasketed. Fully adjustable MR16-style swivel heads are updated with long life, high output LEDs.

58.00 58.0 USD 58.00

58.00

  • Housing Color
  • Operation Type
  • Temp Rating

This combination does not exist.


Download Spec-Sheet:
Installation Instructions:

UL Listed

This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).

LED Lighting

This unit uses energy efficient and long lasting LED's.

Battery Included

This unit contains a battery for backup power. The battery must be connected during installation.

FEATURES

  • UL 924, NEC, OSHA and NFPA 101 Life Safety Code
  • Wet Location Rated
  • Dual 120 or 277 VAC input
  • Fully gasketed corrosion-resistant enclosure
  • Includes two high output LED lamps
  • Solid state charging circuit
  • Short circuit and overload protection on DC output circuit
  • Low voltage disconnect (LVD)
  • Sealed momentary push-to-test switch

Previous Product Codes: EL-WETLED


SPECIFICATIONS

Dimensions
Height 5.76"
Depth 4.30"
Length 13.33"
Weight 4.00 lb

WHAT'S INCLUDED

  • Wet Listed All LED Emergency Light
  • Installation Instructions & Hardware
  • NiCad Battery - Must connect the battery after installation (Located inside unit)


CONSTRUCTION

The EL-WETLED Emergency Light is constructed from injection molded, high impact V-O flame retardant thermoplastic housing. Polycarbonate lens is UV stabilized but some discoloration may occur over time if installed in direct sunlight. White housing is standard.

ILLUMINATION

Emergency lamps use long-lasting, energy efficient ultra bright white LEDs. 12 high output LEDs per head.

EMERGENCY OPERATION

Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

BATTERY - BATTERY BACKUP

The EL-WETLED series is designed with a maintenance-free 3.6V 900mAh NiCad battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.

OPERATIONAL TEMPERATURE

Battery Backup Model: 50°F (10°C) to 104°F (40°C)Internal Heater Model: -4°F (-20°C) to 122°F (50°C)

PHOTOMETRICS

Total Luminaire Lumens : 57.9 Per Lamp

Download .IES File

Standard mounting height of 7.5ft illuminates 1 footcandle (FC) spaced at 24ft for a 3ft path of egress.


ELECTRICAL COMPONENTS

Dual voltage input 120/277 VAC operation. LED display indicates AC/ON. An external push button test switch with battery backup units allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.

INSTALLATION

The EL-WETLED Wet Listed Emergency Light is suitable for surface wall and ceiling mounting via included canopy. Quick connect installation design allows for quick and easy installation.

Mounting Configurations Explained

View Installation Instructions

DIMENSIONS
