Combo | Assembled in the USA [COMBO-USA]

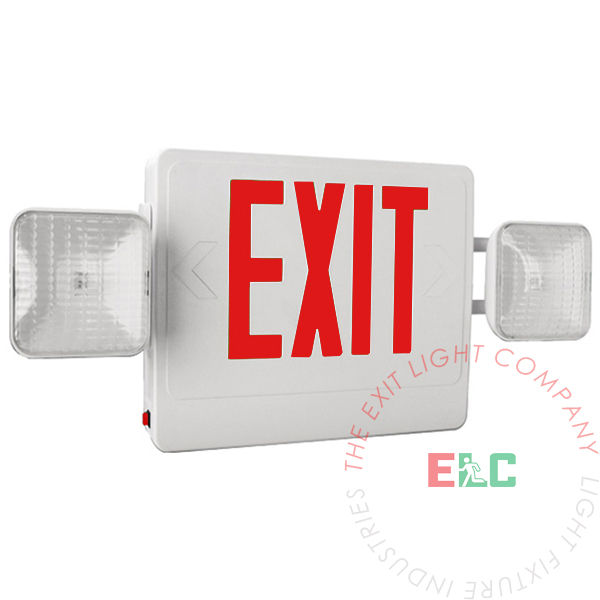

A made in the USA LED Exit Sign with Incandescent Emergency Lights Combo Unit. UL Listed for Damp Locations with high-impact thermoplastic housing. The exit sign provides ultra-bright and energy efficient LED illumination and includes two fully-adjustable 5.4 watt, glare free lamp heads. Substantial transformation assembly in the U.S. complies with "Assembled in the USA" under the Buy American Act.
This item has been tested and meets safety standards imposed by the Underwriters Laboratories (UL).
This unit uses energy efficient and long lasting LED's.
This unit contains a battery for backup power. The battery must be connected during installation.
FEATURES
- UL 924, NEC, OSHA and NFPA 101 Life Safety Code
- Listed for damp location
- LED Exit Illumination. Uses 6V SLA Battery.
- Two fully adjustable, glare-free Incandescent lighting heads
- Injection molded, 5VA flame retardant thermoplastic housing
- 120/277 VAC operation
- Universal mounting plate
- Knock-out left/right arrows
- LED indicator light with push-to-test switch
SPECIFICATIONS
| Dimensions | |
|---|---|
| Width | 23" |
| Height | 10" |
| Depth | 2.75" |
| Weight | 8.00 lb |
WHAT'S INCLUDED

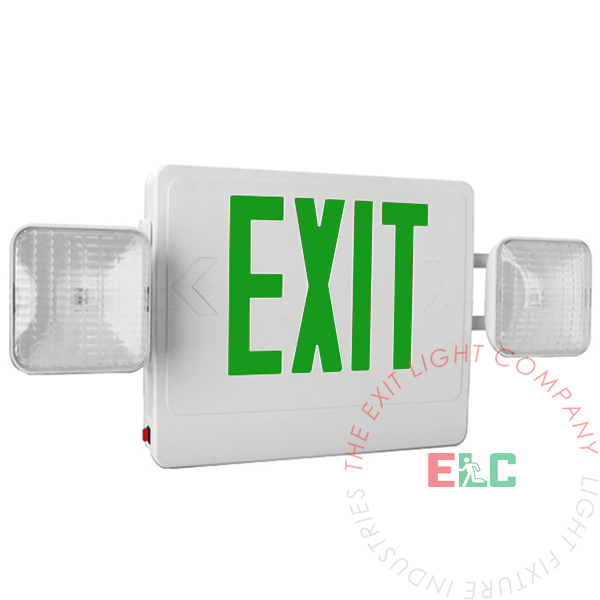

- RED or GREEN Combo Exit Sign / Emergency Light
- Two "EXIT" Faceplates (with optional knockout arrows)
- One Blank Faceplate
- Mounting Canopy, Installation Instructions & Hardware (Inside Unit)
- 6V SLA Battery - Must connect the battery after installation
CONSTRUCTION
The COMBO-USA series is constructed from injection-molded, high-impact, engineering-grade, 5VA flame retardant thermoplastic. White housing is standard.
ILLUMINATION
Emergency lamps use bright Incandescent lighting. Heads are made with smooth thermoplastic reflectors and plastic lens for optimal light distribution. Ultra-Bright, energy efficient Red or Green LED Exit Sign illumination.
EMERGENCY OPERATION
Upon failure of the normal utility power, an internal solidstate transfer switch automatically provides uninterrupted emergency operation for at least 90 minutes. The fully automatic solid-state, two-rate charger initiates recharging a discharged battery within 24 hours.
BATTERY - BATTERY BACKUP
The COMBO-USA series is designed with a 6V Sealed Lead Acid (SLA) battery that provides a minimum emergency duration of 90 minutes. Recharge time of the battery is 24 hours.
SELF-TESTING OPTION
Unit continuously monitors the AC power, battery supply voltage, emergency lamp condition and charging circuit. If failure is detected, the indicator will show status and correct when adjusted. Unit will automatically perform NFPA required monthly and annual testing. Refer to user manual for details.
REMOTE HEAD CAPABLE OPTION
The remote head capability option allows the ELCCOMBO-USA unit to supply power to up to two additional Incandescent remote heads up to 11 total watts. The remote heads would then operate on the same emergency mode as the standard units.
ELECTRICAL COMPONENTS
120/277 VAC operation. LED display indicates AC/ON. An external push button test switch allows maintenance personnel to quickly determine the operational status of the unit. Unit offers surge protected, solid state circuitry.
INSTALLATION
The COMBO-USA is suitable for surface wall and top mounting via included canopy. Snap together design allows for quick and easy installation. Knock-out chevrons for customized egress signage.
Mounting Configurations Explained
DIMENSIONS
